STAGE 92:
Rear lights.
Pic 1: Connect cable 92A (10) to cable 10 exiting the rear right light aperture on the body.
Pic 2: Fix the wire to the body as shown with tab 92C and 1 x AP screw.
Pic 3: Retrieve the rear bumper assembly from stage 1 and carefully undo the fixing clips indicated.
Pic 4: Remove the rear bumper.
Pic 5: Fit the LED panels 92B as shown and fix the wires with 2 x tabs 92C and 2 x KM screws.
Pic 6: Cover the rear of the LED panels using 2 x strips 92D.
Pic 7: Connect the wires and plugs as shown.
Pic 8: Feed the plugs and wires back into the light aperture and then fix the rear panel in place with 3 x DM screws.
Pic 9: Press-fit the rear bumper panel back in place.
Store safely for now.roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,730 Points: 17,342 Location: ipswich
|
STAGE 93:
Front lights.
Pic 1: Fit the grille 93B to the front panel 93A.
Pic 2: Fix from behind with 2 x BP screws.
Pic 3: Fit the 4 x front lights 93C.
Each clear lens has a small raised dot – highlighted in red.
This must be at the top.
Pic 4: Fix from behind with 2 x BP screws in each light.
Pic 5: Fit the LED wire 93D as shown with the plug on the right.
Pic 6: Fit the lower LED cable 93E as shown with the plug on the right and the LED’s passing through the holes in the lower panel.
Pic 7: Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,730 Points: 17,342 Location: ipswich
|
STAGE 94:
Valance and grille.
Pic 1: Fix the valance 94A to the bottom of the previous stage with 2 x DM screws.
Pic 2: Fix the grille 94B in place with 4 x DM screws along the upper edge, and 4 x IP screws at the bottom.
Pic 3: Connect the wires and plugs at the front of the car as shown.
Pic 4: Taking care not to trap any wires, fix the front in place on the body as shown using 3 x DM screws.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,730 Points: 17,342 Location: ipswich
|

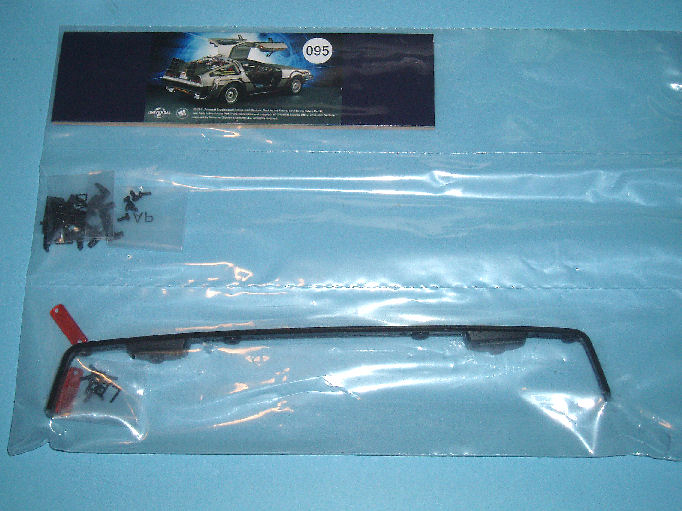

STAGE 95:
Bumper, lower lights and brackets.
Pic 1: Fix the orange light cover 95C to the bumper 95B as shown using 2 x AP screws.
Repeat at the other end of the bumper.
Pic 2: Fix the 6 x 95A brackets to the bumper using 1 x LP screw in each from behind.
Pic 3: Press-fit the LED’s into place as shown.
Pic 4: Carefully feed the wiring back into the body so you can fit the bumper, then fix with 4 x DM screws.
Make sure the wrap-around ends are seated properly in their recesses.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
Rank: Super-Elite Groups: Official Builds, Administrators, Moderator, Global Forum Support, Registered Joined: 04/06/2011 Posts: 5,730 Points: 17,342 Location: ipswich
|

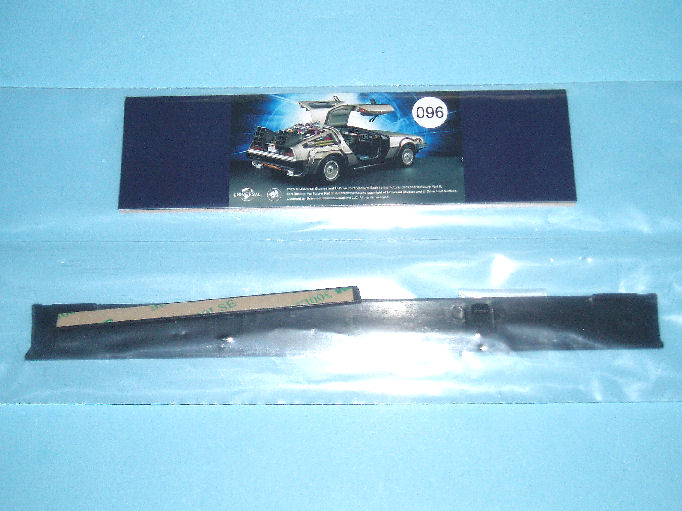

STAGE 96:
Lower side valance.

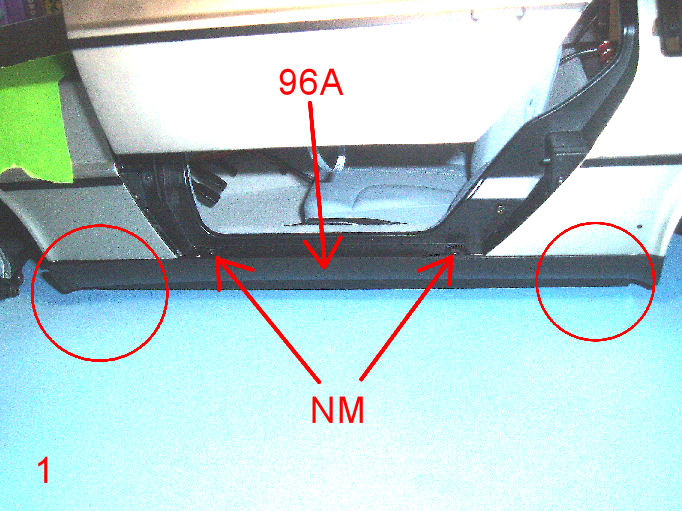

Pic 1: Holding the driver’s door open carefully, fit the valance 96A in place making sure the front and rear ends are tucked inside the body.
Fix in the door step with 2 x NM screws.
Pic 2: Peel the backing from the tread plate 96B and stick it in place where shown.
Make sure the ‘DMC’ is the right way up.
Store safely for now.
roymattblack attached the following image(s):
|
|
|
|
