Timber Required.

I am trying to form my edging plank round the bow of the ship. See the pictures below of how I am trying to achieve that, I have used a piece of plywood, but when cut to 5mm wide, It is just breaking at the short grain end, Any ideas of what material I could use to stop this breaking, or any other tips.

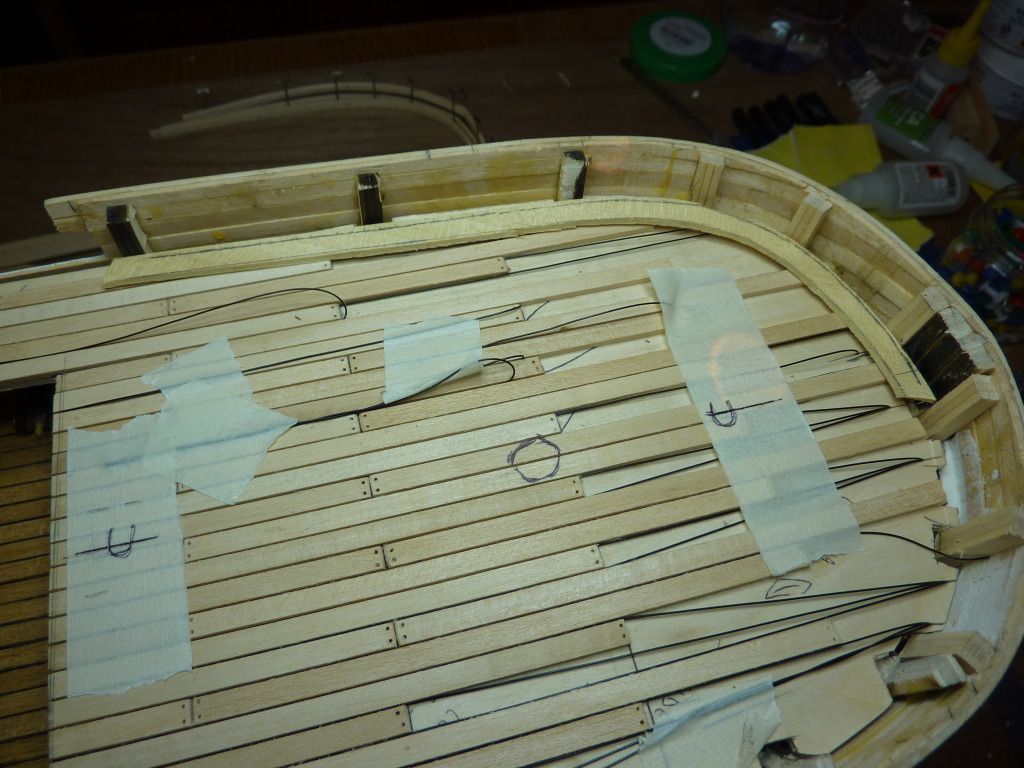

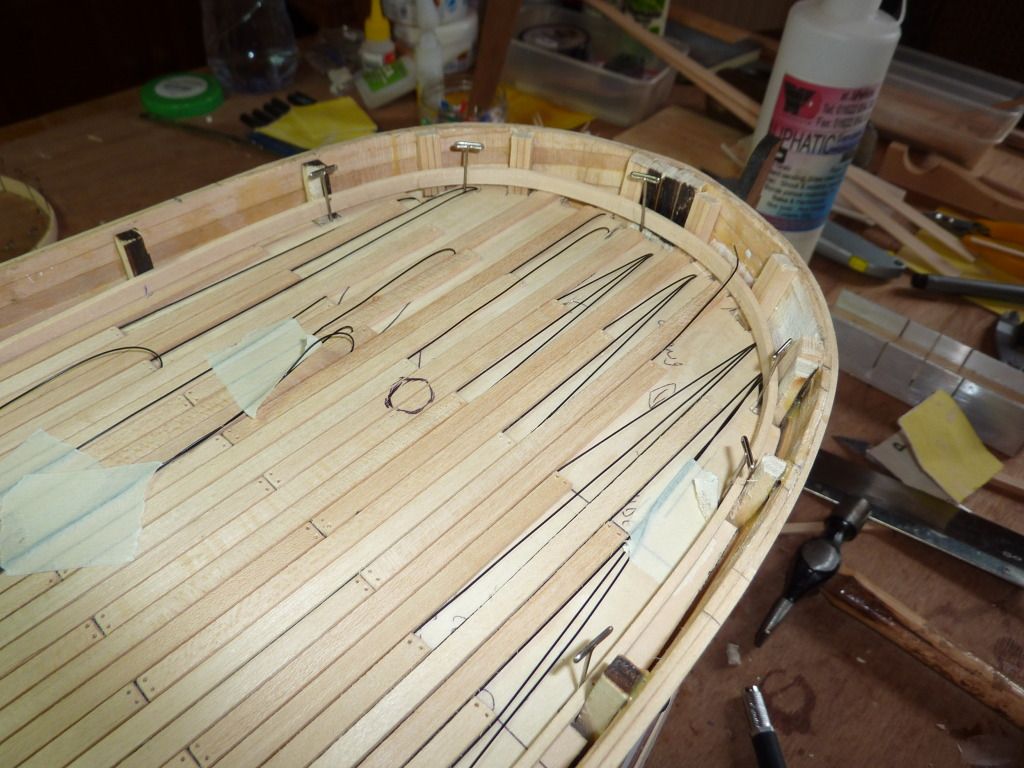

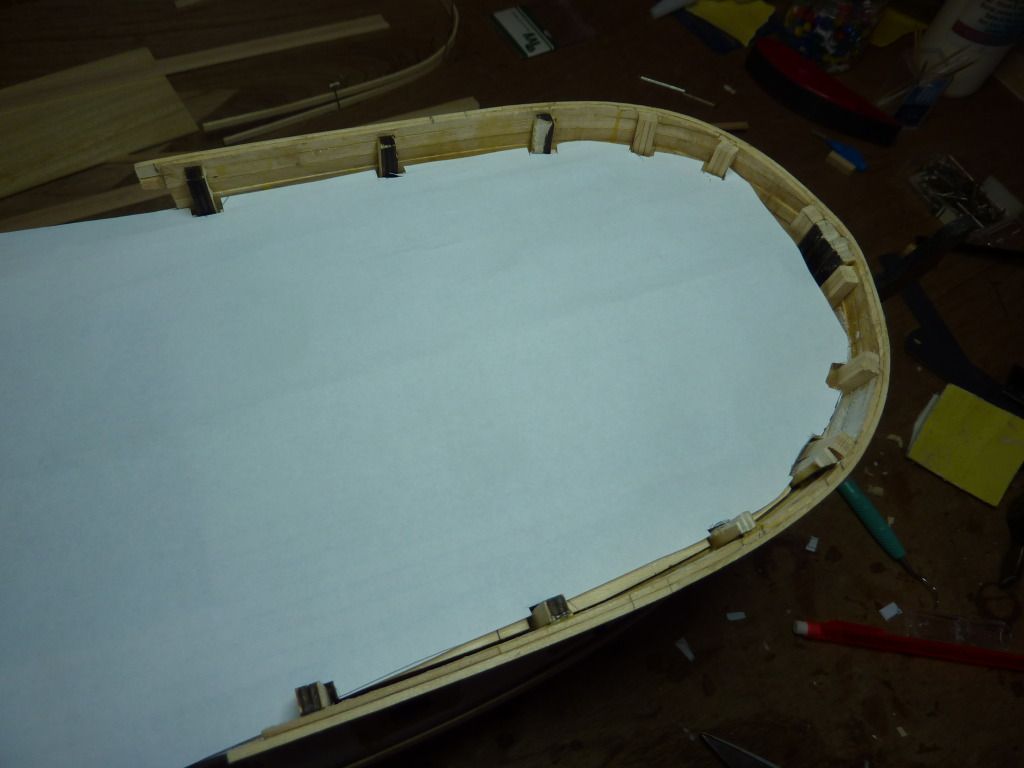

First picture is the bow with one bulwark plank in place.








The next step is to make a paper template of the curve.

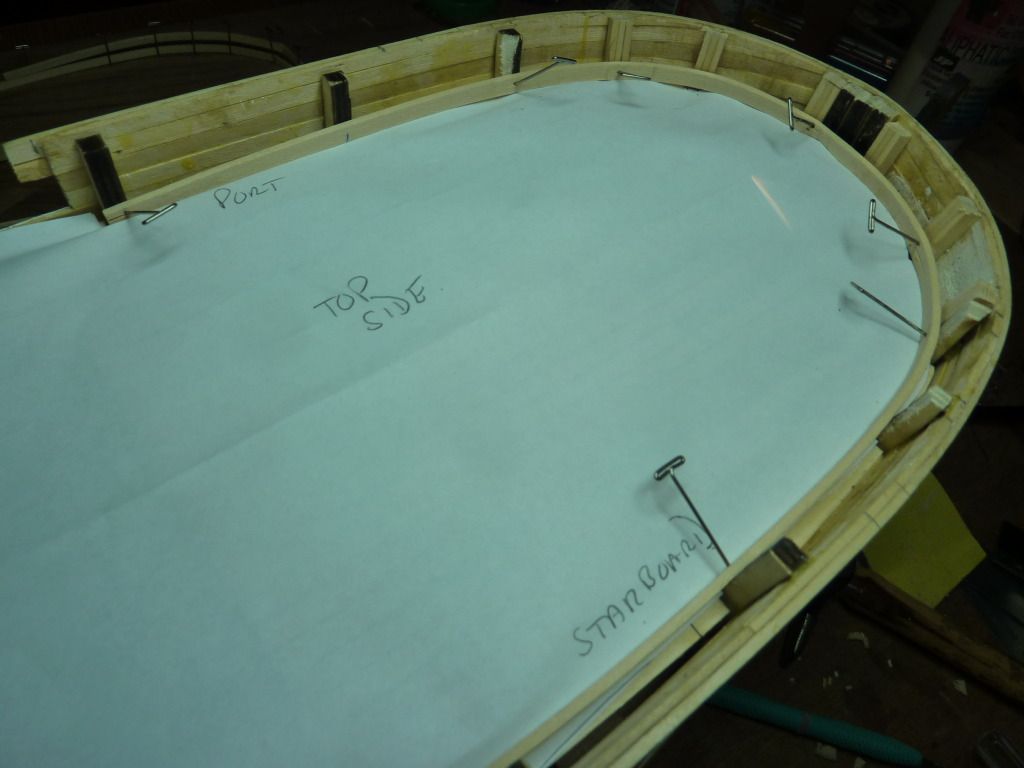

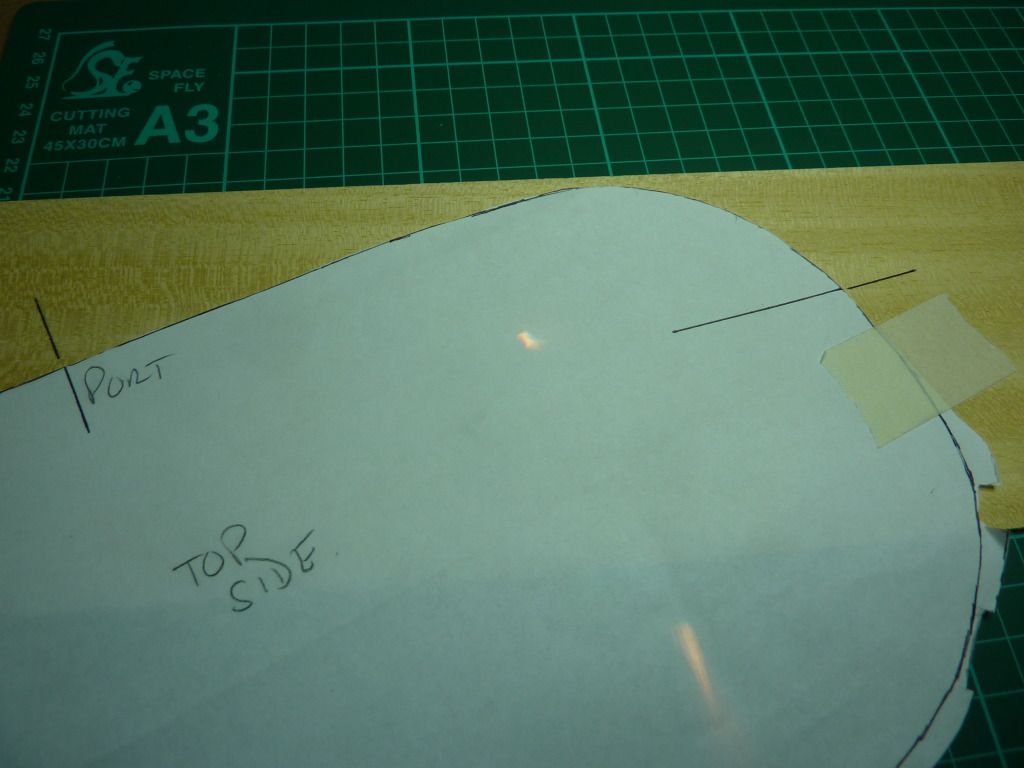

I then put the paper template on the deck and trapped the bulwark plank on top of the template and drew around the bulwark plank to get the radius curve.

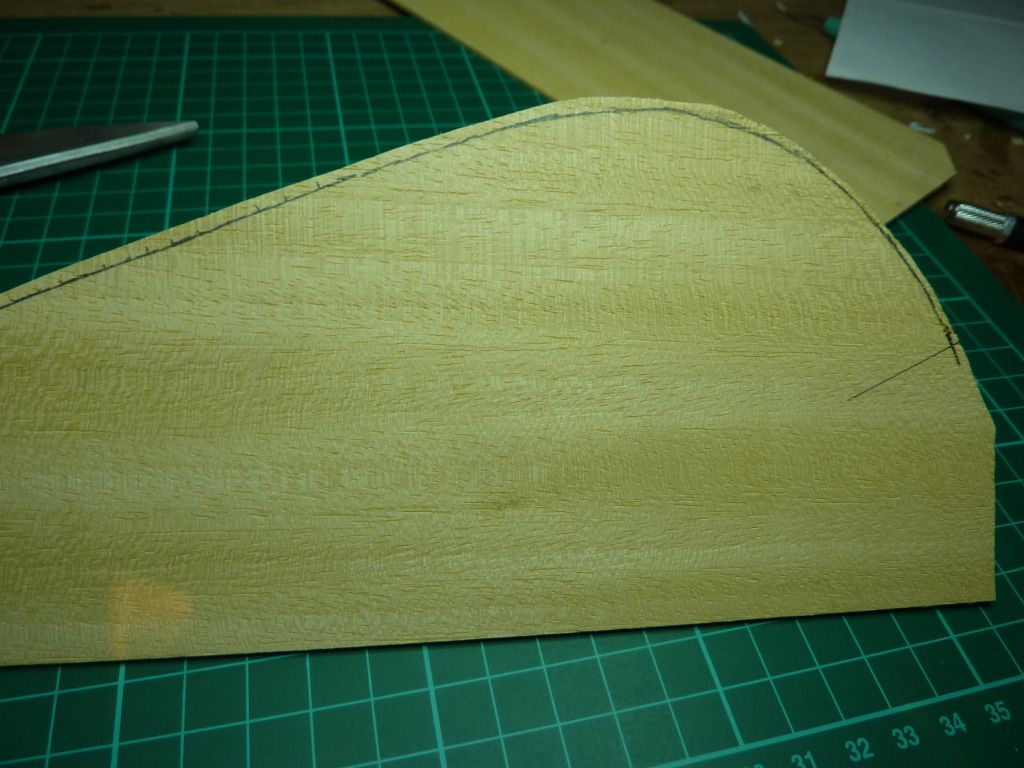

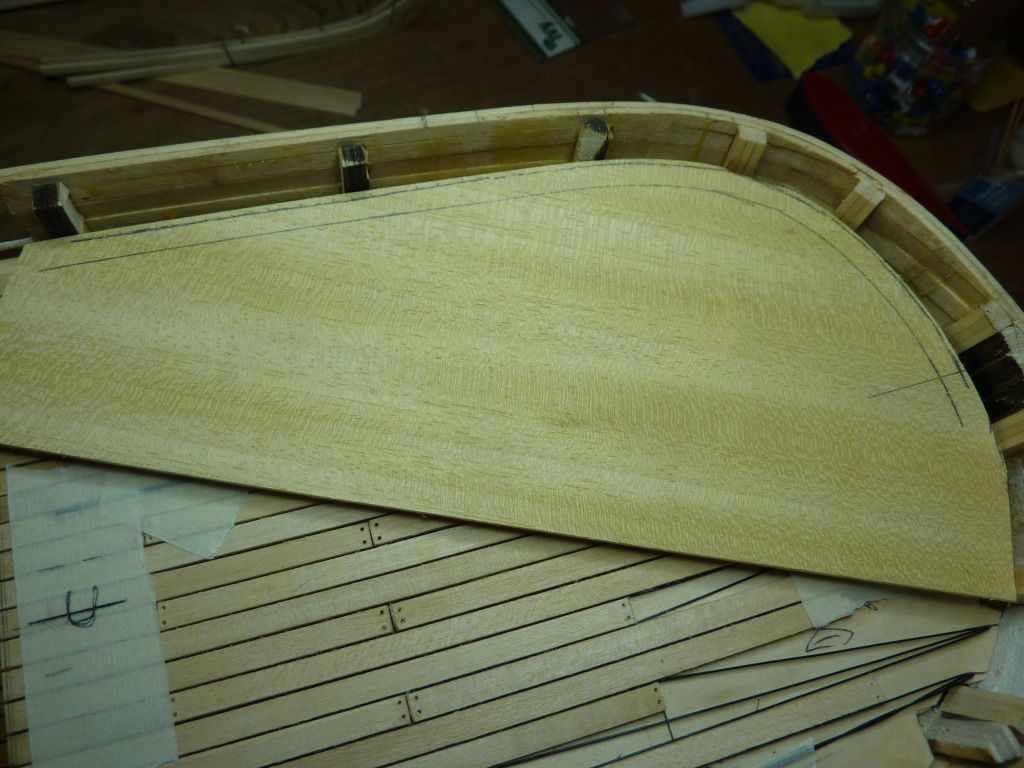

I then marked the curve on the plywood and cut to the curve.

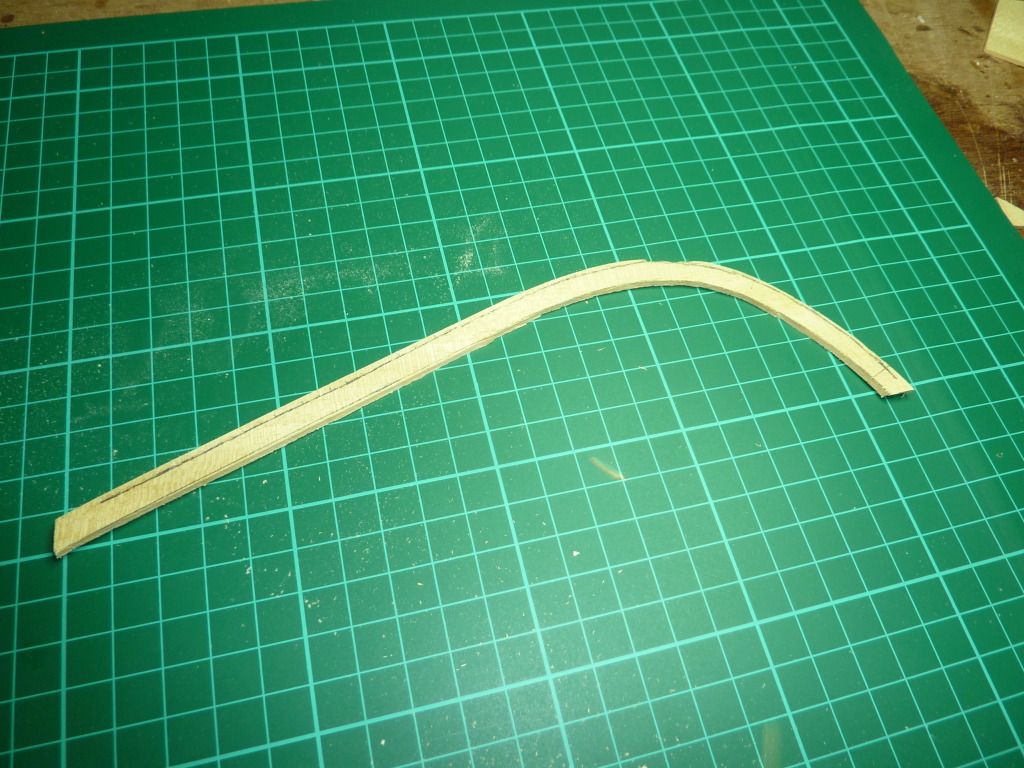

I worked out pretty well, apart from the fact it keeps breaking at the short grain point.
Any advice on material I should be using and a supplier would be very helpfull to apprentice builder.

Mo
Mo
harty
#2 Posted : 20 August 2012 23:22:33

Rank: Pro

Groups:

Joined: 24/08/2009
Posts: 48,827
Points: -13,348
I done mine in 2mm sheet ply the same way as you are doing it. Try cutting it a little oversize and then sand it back with progressive grain of sand paper also I didnt have the bulkheads in the way. I cut to them and not around them. This let me remove the complete deck for easier working. Hope this helps a bitBigGrin
arpurchase
#3 Posted : 20 August 2012 23:43:54

Rank: Super-Elite

Publisher Medal: Featured Build of the MonthActive Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsTurquoise Medal: Turquoise Medal for model making know-how contributionOutstanding Build: An award for an outstanding buildBuild-Diary Medal: Build-Diary Medal of HonourRed Medal: Red Medal
Groups: Registered

Joined: 27/09/2011
Posts: 15,196
Points: 45,687
Location: Dudley
Just an idea, make template of the full curve, like the half template you already did but a full round of the curve your after. Then soak your wood for a good couple of hours fit around the template with elastic bands/clamps leave to set overnight this should leave you with the desired full curve your after
Andy
Current builds:-C57,Zero, Lamborghini Countach, Caldercraft HMS Agamemnon,Robi,R2-D2, MFH Cobra .

Dontshootme
#4 Posted : 21 August 2012 08:38:33

Rank: Master
Active Service Medal: 500 post active service MedalPurple Medal: Super active service medal for 1000 postsBuild-Diary Medal: Build-Diary Medal of Honour
Groups: Registered

Joined: 15/04/2010
Posts: 1,266
Points: 3,841
Location: The Quantock Hills,Somerset
Cornwall Model Boats used to stock some flexible 5x2 planks that allow sideways curves like your trying to achieve,I have used it & provided you soak it then it takes & holds quite tight curves...wether they still stock it is another matter...just taken a look...heres the link http://www.cornwallmodel...log/beech-flexible.html
Hope this helps
Rob Nolli Illigitimi Carborundum!!!
Current Builds:HMS Victory,SV Thermopylae
iain1/96
#5 Posted : 21 August 2012 10:41:32

Rank: Beginner Level 1

Groups: Registered

Joined: 19/12/2011
Posts: 9
Points: 17
Location: dorchester, dorset
Mo wrote:
Timber Required.

I am trying to form my edging plank round the bow of the ship. See the pictures below of how I am trying to achieve that, I have used a piece of plywood, but when cut to 5mm wide, It is just breaking at the short grain end, Any ideas of what material I could use to stop this breaking, or any other tips.

First picture is the bow with one bulwark plank in place.








The next step is to make a paper template of the curve.






I then put the paper template on the deck and trapped the bulwark plank on top of the template and drew around the bulwark plank to get the radius curve.





I then marked the curve on the plywood and cut to the curve.












I worked out pretty well, apart from the fact it keeps breaking at the short grain point.
Any advice on material I should be using and a supplier would be very helpfull to apprentice builder.

Mo


hi Mo,

I am not sure if my last message got to you so, I will reiterate.

Isuggested that you made the margin plank the same way as the shipwrights did and suggested the you look at Chris's build or, krt2's log on medelshipworld.com Click logs for kits, the wooden kits and fially, Surprise in the index.

Regards & Good luck,

Iain
